Framesets
Framesets are available through authorised Moulton dealers for those looking to create a bespoke, custom-built Moulton.
To ensure every bicycle is assembled to the highest standard and with fully compatible components, framesets are supplied via our approved dealer network rather than sold directly. Your dealer will guide you through the build process and help you select the most suitable specification.
To find your nearest authorised Moulton dealer, please visit our Find a Store page.
| Model | Separable? | Stem Type | Seat Pillar | Wheel Size | Hub Spacing |
|---|---|---|---|---|---|
| NS D-PYLON | Yes | Quill | for 27.2 (not included) | 20" (406mm) | 70mm front, 135mm rear OLD § |
| NS SPEED | - | Ahead | for 27.2 (not included) | 20" (406mm) | 70mm front, 135mm rear OLD § |

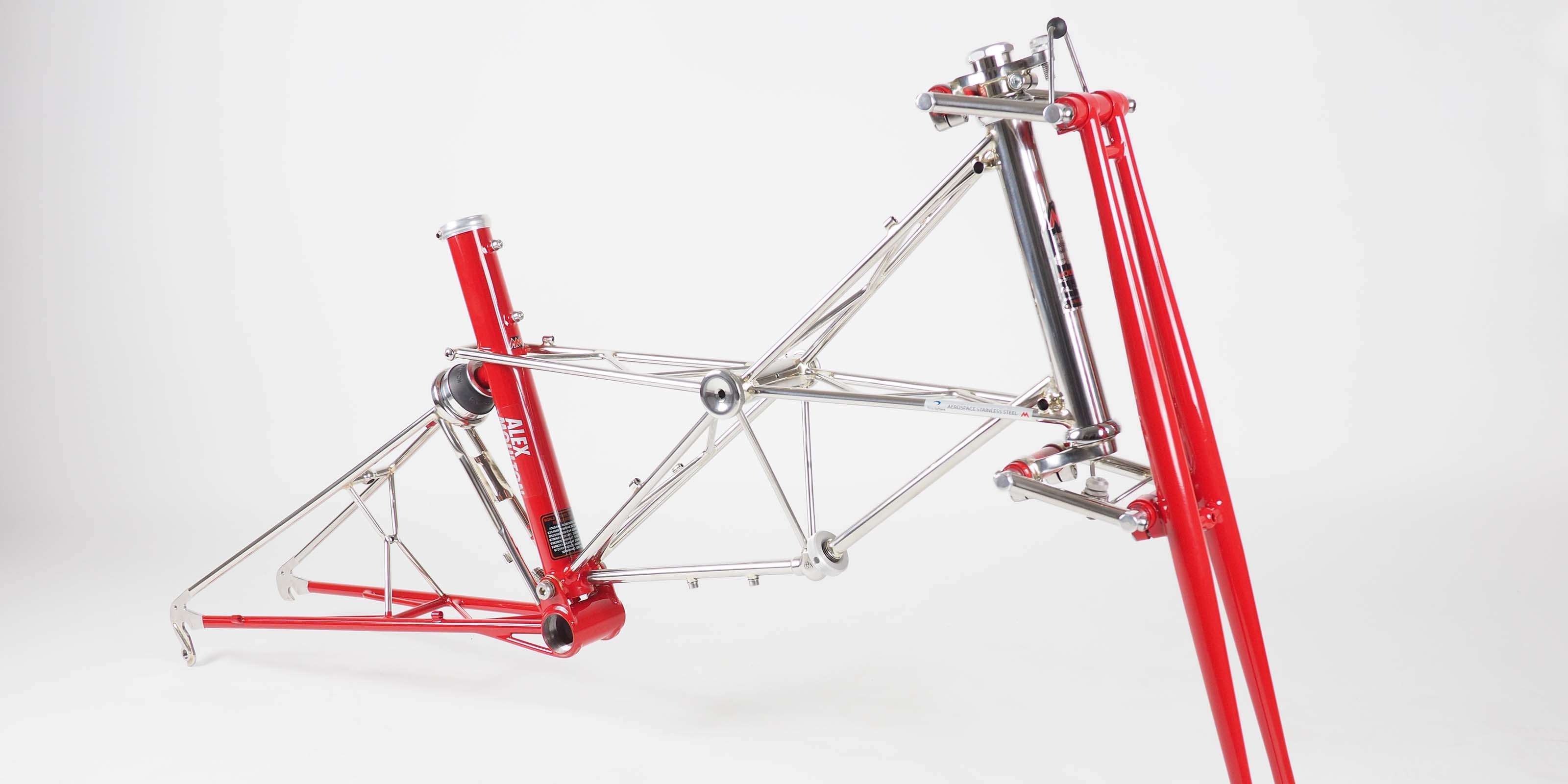

| NS MARATHON * | Yes | Ahead or Quill | Dia. 34.9 x 530 layback | 20" (406mm) | 70mm front, 135mm rear OLD § |
| NS RAPIDE | Yes | Ahead-O | Dia. 34.9 x 530 in-line | 20" (406 or 451mm) | 100mm front, 142 x 12mm rear |
| NS SAFARI | Yes | Ahead-O | Dia. 34.9 x 530 layback | 20" (406mm) | 100mm front, 142 x 12mm rear |
| AM GT * | Yes | Quill | Dia. 34.9 x 530 in-line | 17" | 100mm front, 135mm rear OLD § |
| AM 22 † | Yes | Quill or Ahead | Dia. 34.9 x 530 layback | 17" | 100mm front, 135mm rear OLD § |
| AM SPEED ‡ | - | Ahead | for 27.2 (not included) | 17" | 100mm front, 135mm rear OLD § |
| SPEED | - | Ahead | Dia. 34.9 x 530 layback | 20" (406mm) | 100mm front, 135mm rear OLD § |
| JUBILEE * | Yes | Ahead | Dia. 34.9 x 530 layback | 20" (406mm) | 100mm front, 135mm rear OLD § |
| XTB | Yes | Ahead | Dia. 31.6 in-line | 20" (406mm) | 100mm front, 135mm rear OLD |
| FLYTE | - | Ahead-O | Dia. 34.9 x 450 layback | 20" (406mm) | 100mm front, 135mm rear OLD |
| SST | Yes | Ahead | Dia. 31.6 in-line | 20" (406mm) | 100mm front, 135mm rear OLD |
* Option to have horizontal dropouts and guides for Alfine 11 hub gear.
† Option of 10" or 12.5" head tube length (ahead both sizes, threaded 12.5" only).
‡ Option of 19" or 22" frame size.
§ 130mm OLD Conversion Kit available. Note that custom Moulton hubs, 9–36T, 9–32T, 10–32T (11-speed), and 10–30T (12-speed) cassettes will only fit 135 mm OLD frames.
Please note: All framesets are supplied with headsets.
Stems
Framesets are supplied without stems - please order via your Moulton dealer separately. Quill stems can only be fitted to frames with a threaded steering column.
| Stem | Type | For Handlebar Size | Sizes |
|---|---|---|---|
| WISHBONE Adjustable Stem (1") | Quill or Ahead | 26 | 100, 150, 170 |
| WISHBONE Adjustable Stem (1 1/8") | Ahead | 26 | 100, 150, 170 |
| Alloy Forged Adjustable Stem | Ahead | 31.8 | 110 |
| Alloy Forged Raised (35°) Stem | Ahead | 26 | 90, 110, 135 |
