MOULTON

SPEED

SPEED

£15,240.00

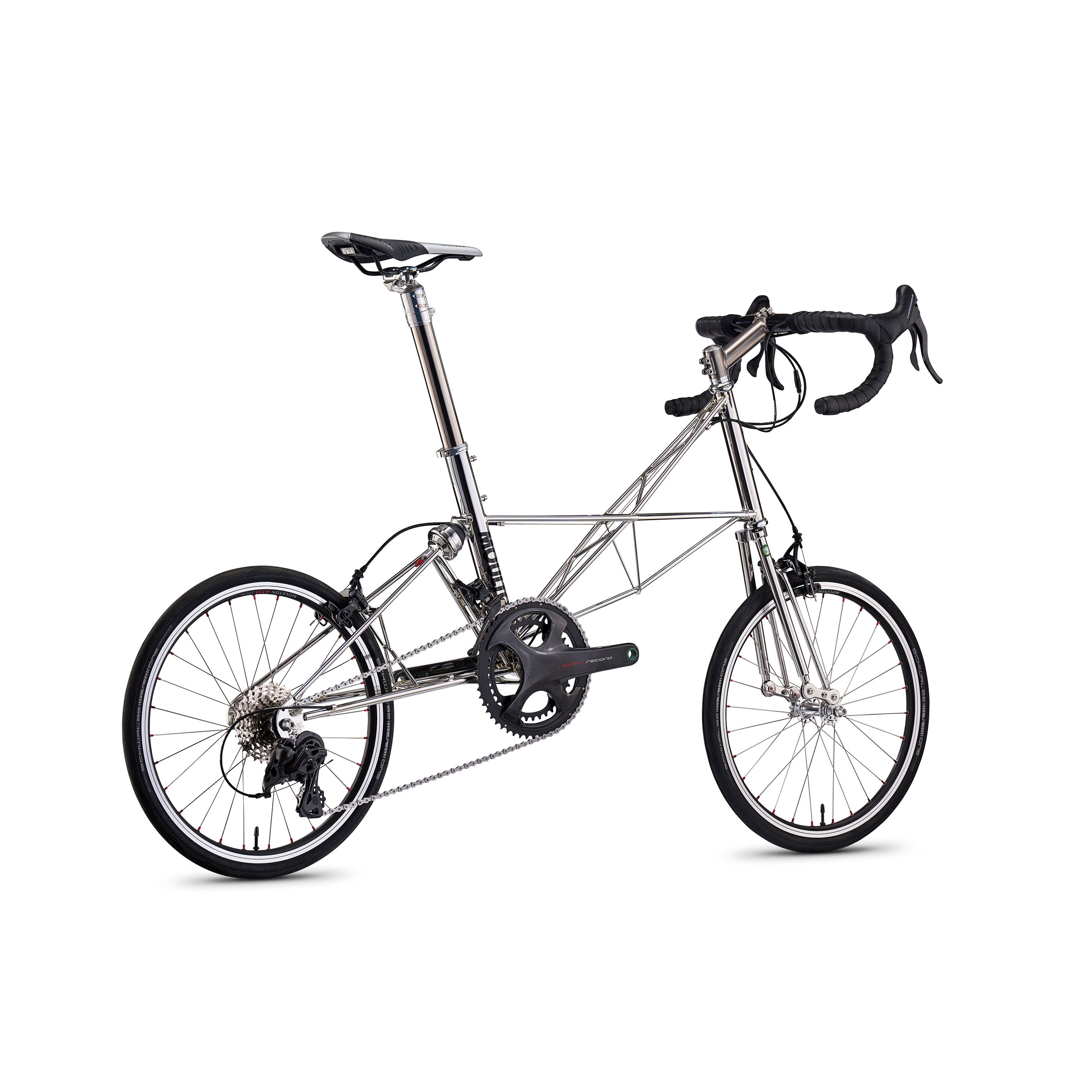

The Moulton SPEED is the lightest and most road-focused model - a fixed-frame, all-stainless spaceframe built without compromise. Using labour-intensive construction in Columbus XCr and aerospace stainless steels, silver-brazed and hand polished to a mirror finish, it is engineered for outright speed and precision. Short-stroke front suspension and Hydrolastic® rear suspension deliver control without softness. Designed as a true speed and race Moulton, the SPEED is a distilled expression of efficiency, stiffness and mechanical clarity.

Hydrolastic®

Leading Link

20" Wheel

Fixed Frame

CURRENT LEAD TIME

The current production lead time for the SPEED is:

8 - 10 months

DELIVERY

We currently ship our bikes to locations in the UK. For international customers, please visit your nearest Moulton stockist or contact us.

Build Spec: Campagnolo Super Record 2x12

SPEEDCampagnolo Super Record 2x12

£15,240.00

SPEED

Key Features

Wheel Size	20"
Front Suspension	Leading Link (crown)
Rear Suspension	Hydrolastic®
Separability	Fixed
Frame Material	Columbus XCr, Reynolds 921 (fork), and Aerospace stainless steels

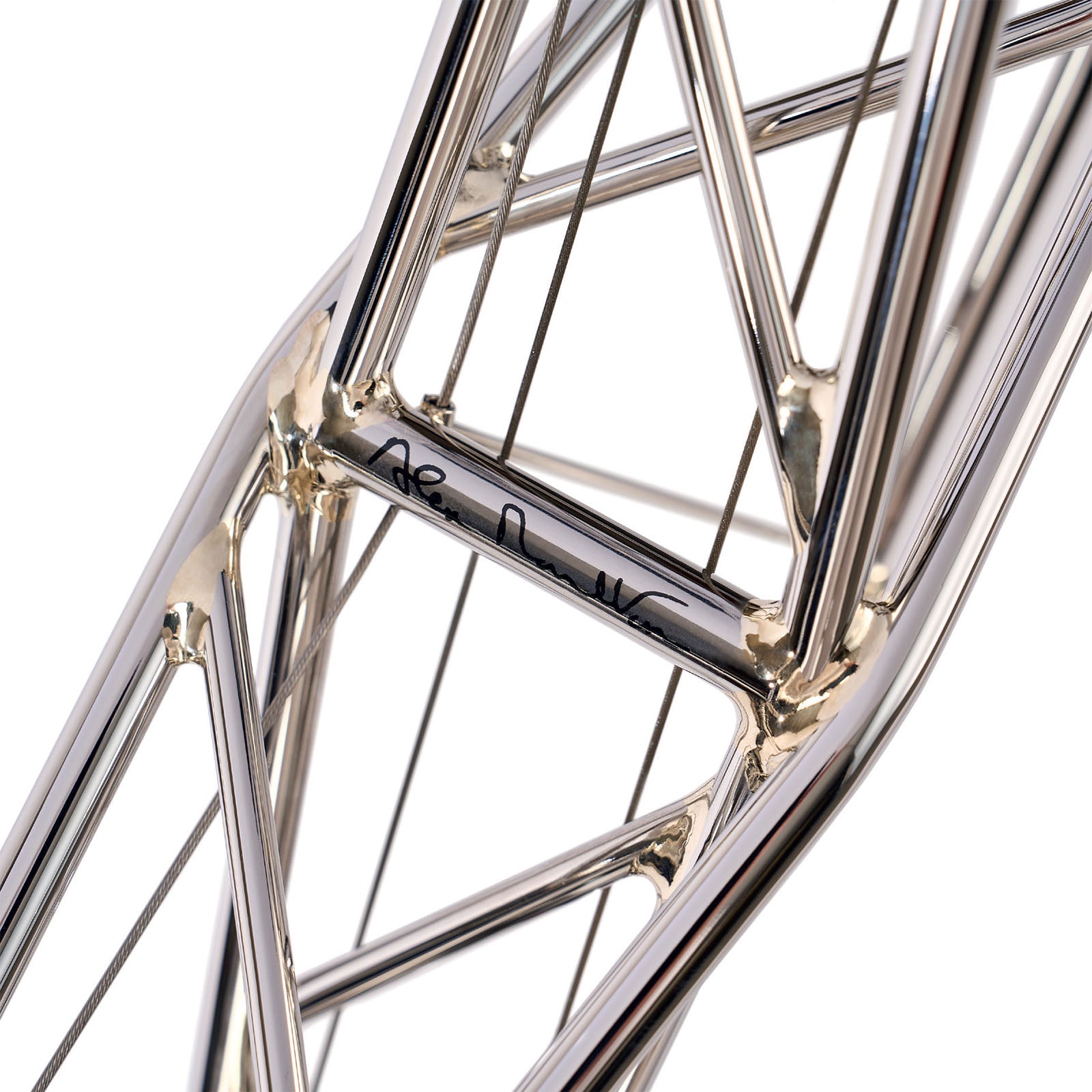

Frame Construction	Silver fillet brazed with ‘shot-in’ tubes. Tubular zig-zags.
Bottle Mounts	1 set: seat tube
Frame Finish	Polished Stainless

Build Specifications

Campagnolo Super Record 2x12

Overview

Brake Type

Caliper

Handlebar Type

Drop

Gear System

Derailleur

Drive Train

Front Mech

Campagnolo Super Record

Rear Mech

Campagnolo Super Record

Crankset

Campagnolo Super Record Carbon Ti 53/39

Cassette

Moulton CNC 10-30 12 speed CrMo/Ti/Al

Chain

Connex 12s0

Bottom Bracket

Campagnolo Ultra-Torque (ceramic)

Gear Range (inches)

26-99" (53/39t)

Brakes

Brakes

Campagnolo Super Record

Gear/Brake Levers

Campagnolo Super Record

Cockpit

Handlebar

Deda Zero100 RHM BoB (42 o-o)

Tapes/Grips

Brooks Cambium Rubber

Handlebar Stem

Custom Titanium (80, 100, 125 or 150mm)

Headset

Moulton custom lightweight 1" sealed

Seat

Saddle

Fizik Antares

Seatpost

Moulton 953, in-line head

Wheels

Tyres

Schwalbe One (folding) 28-406

Rear Hub

Moulton custom forged 28h silver

Front Hub

Moulton custom forged 28h silver

Spokes

Sapim Laser/Force butted (differential)

Mudguards

n/a

Mudguard Clearance

n/a

Other

Pedals

none supplied

Weight

9 kg / 19.8 lb
