MOULTON

JUBILEE

JUBILEE

£7,475.00

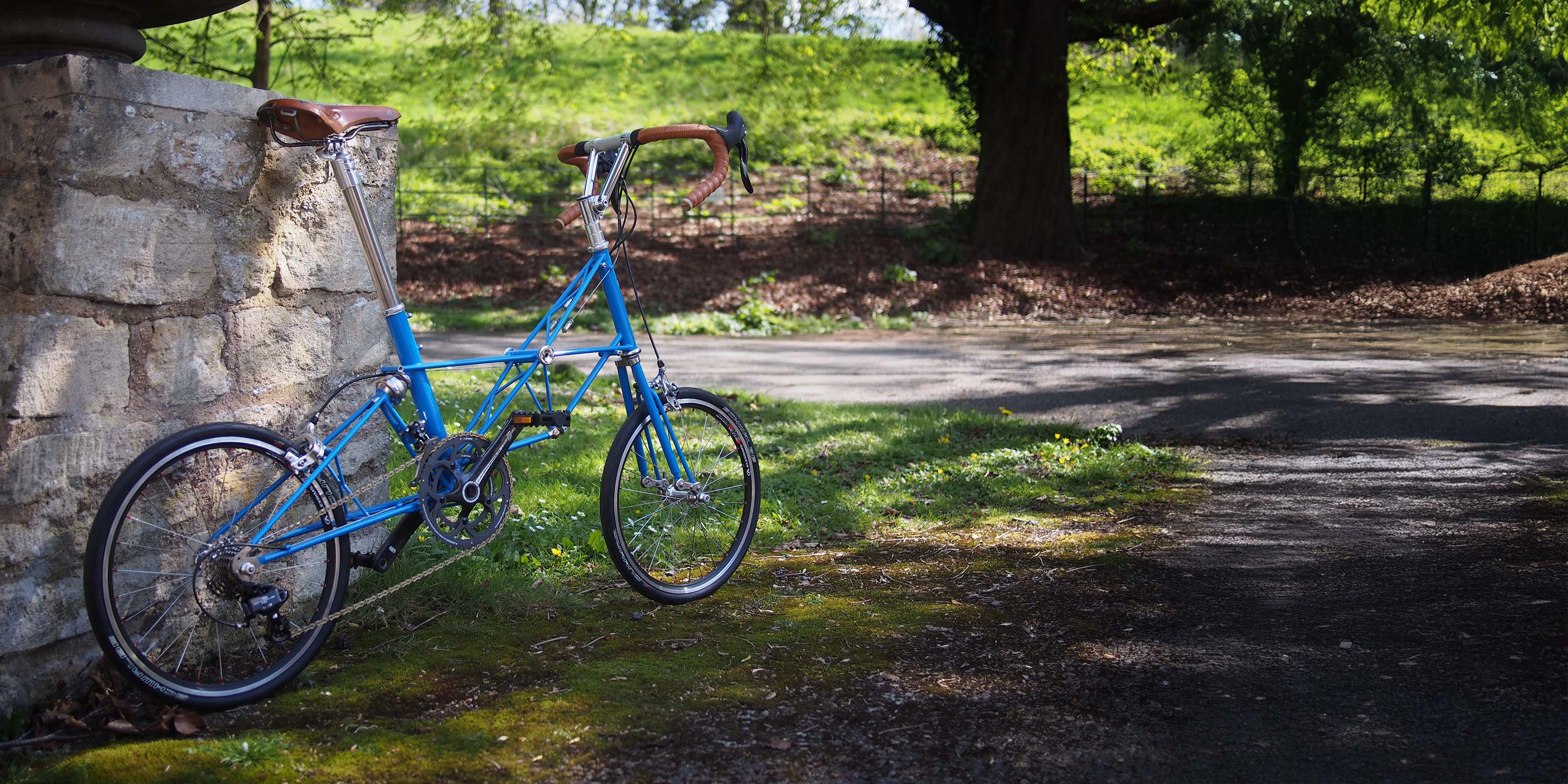

Originally launched to celebrate fifty years of the Moulton bicycle, the Moulton Jubilee has become a defining model within the range. It represents a higher-tier spaceframe interpretation of the Moulton system, using lighter-gauge specialist tubing and structural refinement to deliver exceptional composure over distance. Engineered for road and long-distance performance with genuine touring capability, the Jubilee combines advanced fabrication with enduring practicality and stands as the modern continuation of the AM series engineering lineage.

Monosphere

Leading Link

20" Wheel

Separable

CURRENT LEAD TIME

The current production lead time for the JUBILEE is:

4 - 6 months

DELIVERY

We currently ship our bikes to locations in the UK. For international customers, please visit your nearest Moulton stockist or contact us.

Build Spec: Campagnolo Centaur 2x11

JUBILEECampagnolo Centaur 2x11

£7,475.00

JUBILEE

Key Features

Wheel Size	20"
Front Suspension	Leading Link (crown)
Rear Suspension	Monosphere
Separability	Separable
Frame Coupling	Kingpin + stainless locknut
Frame Material	Columbus Spirit and Kaisei NiCroMo steels (stainless steel dropouts)

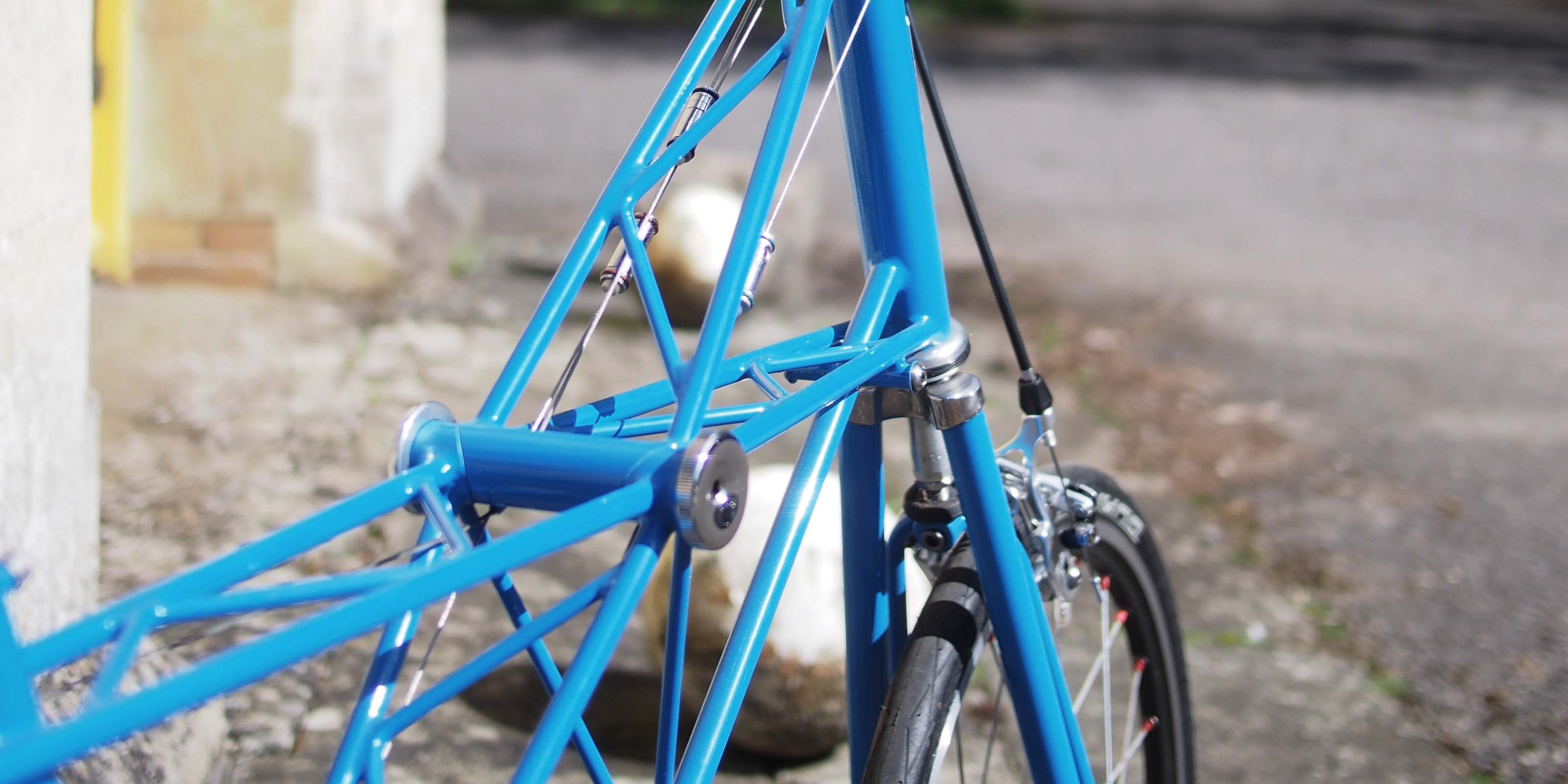

Frame Construction	Fillet-brazed with ‘shot-in’ tubes. Tubular zig-zags.
Bottle Mounts	2 sets: seat tube & lower rail
Frame Finish	Stove Enamel

Build Specifications

Campagnolo Centaur 2x11

Shimano Alfine 11

Shimano 105 2x11

Overview

Brake Type

Caliper

Handlebar Type

Drop

Flat

Flat or Drop

Gear System

Derailleur

Hub

Derailleur

Drive Train

Front Mech

Campagnolo Centaur Black

n/a

Shimano 105

Rear Mech

Campagnolo Centaur Black

n/a

Shimano 105

Crankset

Campagnolo Centaur Black 52/36 or 58/44

Shimano Alfine 45t w/chainguard

Shimano 105 53/39

Cassette

Moulton 10-32

17t

Moulton 10-32

Chain

Connex 11sX

Connex 900 9 speed

Connex 11sX

Bottom Bracket

Campagnolo Ultra-Torque

Shimano Hollowtech II

Gear Range (inches)

21-96" (52/36t) or 26-107" (58/44t)

26-106" (45t)

23-99" (53/39t)

Brakes

Brakes

Tektro R539 DP 57 caliper

Gear/Brake Levers

Campagnolo Centaur Black

Tektro FL750 / Shimano Alfine rapidfire

Shimano 105

Cockpit

Handlebar

Deda Speciale classic drop (44 or 42 o-o)

M Special flat bar

GB Carter drop Bar (42 c-c)

Tapes/Grips

Brooks Cambium Rubber

Handlebar Stem

AL ahead stem (90, 110 or 135mm)

AL adjustable stem 110 / 31.8

Headset

Moulton custom lightweight 1" sealed

Seat

Saddle

Fizik Antares

Selle San Marco Regal Short Dynamic 165

Selle San Marco Regal Short Dynamic 140

Seatpost

Moulton / Reynolds Titanium, layback

Wheels

Tyres

Schwalbe One (folding) 28-406

Rear Hub

Moulton custom forged 28h silver

Shimano Alfine 11 speed 32h silver

Moulton custom forged 28h silver

Front Hub

Moulton custom forged 28h silver

Moulton custom forged 28h silver 70mm

Moulton custom forged 28h silver

Spokes

Sapim Laser/Force butted (differential)

Sapim Laser butted front/PG rear

Sapim Laser/Force butted (differential)

Mudguards

Available as accessory

Mudguard Clearance

Up to 28mm tyre section

Other

Pedals

none supplied

MKS Promenade q/r

none supplied

Weight

10.2 kg / 22.5 lb

11.2 kg / 24.7 lb

10.3 kg / 22.7 lb

JUBILEE

Geometry

Stack	465mm
Reach	397mm
Head Tube Length	218mm
Seat Tube Length	380mm
