MOULTON

NS SPEED


NS SPEED

Sale price£19,260.00

The Moulton NS Speed is the lightest fixed-frame model in the New Series range and one of the pylon designs - the most structurally concentrated expression of Moulton spaceframe architecture. Constructed in aerospace-grade stainless steel and finished in hand-polished mirror form, it replaces the conventional seat tube with a fabricated single pylon column and eliminates frame separability to maximise structural continuity. Unified rear fork construction, Hydrolastic® rear suspension and Flexitor® front suspension remain integral. The result is a singular road machine - structurally exacting, materially elevated and engineered for sustained pace.


Hydrolastic®
Flexitor®
20" Wheel
Fixed Frame
CURRENT LEAD TIME

The current production lead time for the NS SPEED is:

  • 8 - 10 months
DELIVERY
  • We currently ship our bikes to locations in the UK. For international customers, please visit your nearest Moulton stockist or contact us.
Build Spec: Campagnolo Super Record 2x12

Build Spec

Enquire about NS SPEED

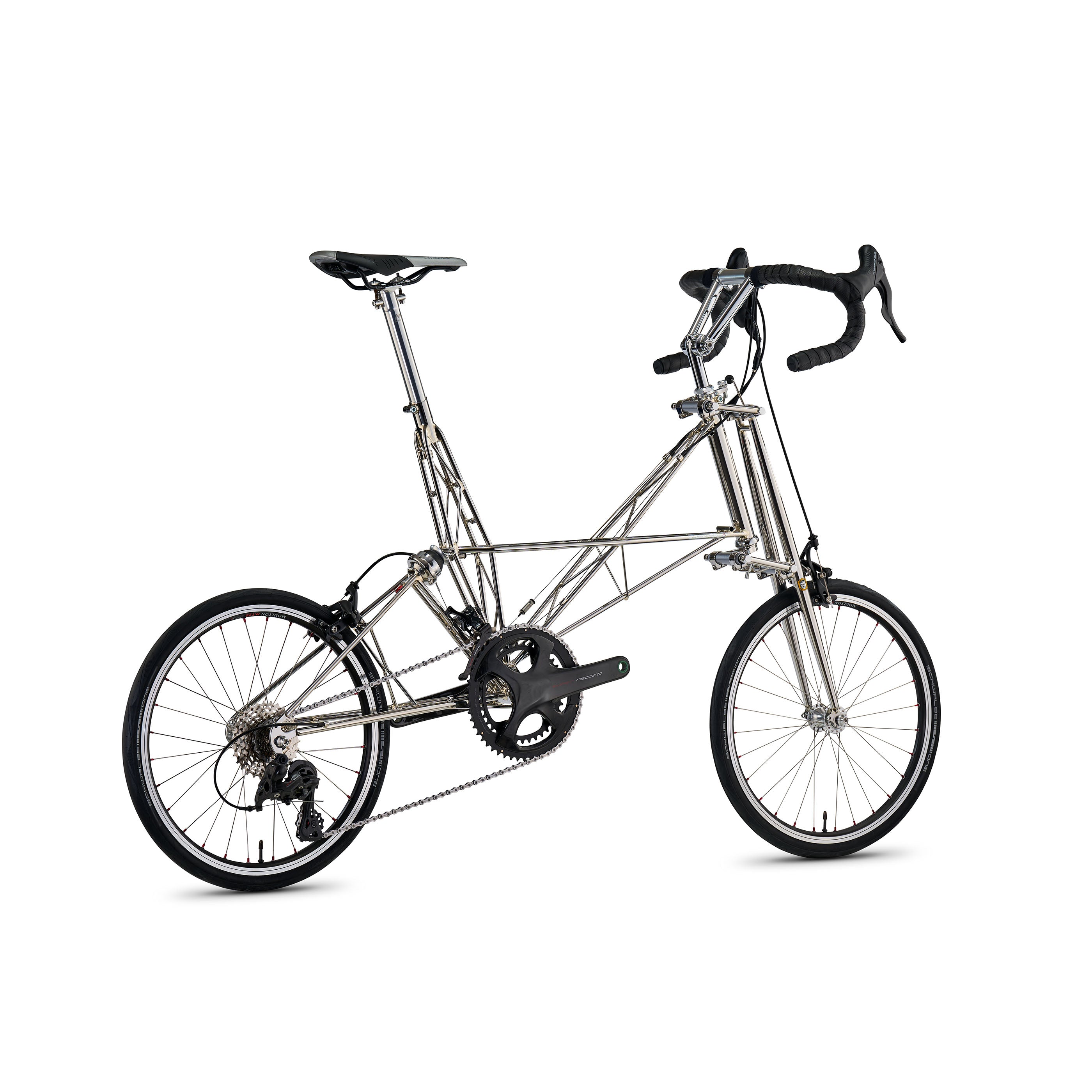

Moulton NS Speed bicycle in stainless steel with Campagnolo Super Record 22-speed groupset
NS SPEEDCampagnolo Super Record 2x12 Sale price£19,260.00
NS SPEED

Key Features

Wheel Size
  • 20" (406mm)
Front Suspension
  • Flexitor®
Rear Suspension
  • Hydrolastic®
Separability
  • Fixed
Frame Material
  • Aerospace stainless steel and Reynolds 931 stainless steel (forks)
Frame Construction
  • Silver fillet brazed. Twin tube 'pylon' seat mast. Tubular zig-zags.
Bottle Mounts
  • 2 sets: front and rear of 'Pylon' seat mast
Frame Finish
  • Polished Stainless

Build Specifications

Campagnolo Super Record 2x12

Overview

Ride Category

  • Road & Race

Brake Type

Caliper

Handlebar Type

Drop

Gear System

Derailleur

Drive Train

Front Mech

Campagnolo Super Record

Rear Mech

Campagnolo Super Record

Crankset

Campagnolo Super Record Carbon Ti 53/39

Cassette

Moulton CNC 10-30 12 speed CrMo/Ti/Al

Chain

Connex 12s0

Bottom Bracket

Campagnolo Ultra-Torque (ceramic)

Gear Range (inches)

26-99" (53/39t)

Brakes

Brakes

TRP RG957 sidepull 57 caliper

Gear/Brake Levers

Campagnolo Super Record

Cockpit

Handlebar

Deda Zero100 RHM BoB (42 o-o)

Tapes/Grips

Brooks Cambium Rubber

Handlebar Stem

Custom Titanium (80, 100, 125 or 150mm)

Headset

Moulton custom lightweight 1" sealed

Seat

Saddle

Fizik Antares

Seatpost

2-bolt forged AL in-line, 27.2x350

Wheels

Tyres

Schwalbe One (folding) 28-406

Rims

Moulton MT20 Black (CNC brake track)

Rear Hub

Moulton custom forged 28h silver

Front Hub

Moulton custom forged 28h silver 70mm

Spokes

Sapim Laser/Force butted (differential)

Mudguards

Available as accessory

Mudguard Clearance

Up to 28mm tyre section

Other

Pedals

none supplied

Weight

9.5 kg / 20.9 lb
